Integrated Wind Speed & Direction Sensor
Integrated cup anemometer and wind vane with selectable 0–30, 0–50 or 0–60 m/s range and one RS485, 4–20 mA or voltage output configuration.
Category: Environmental & Agriculture Sensors

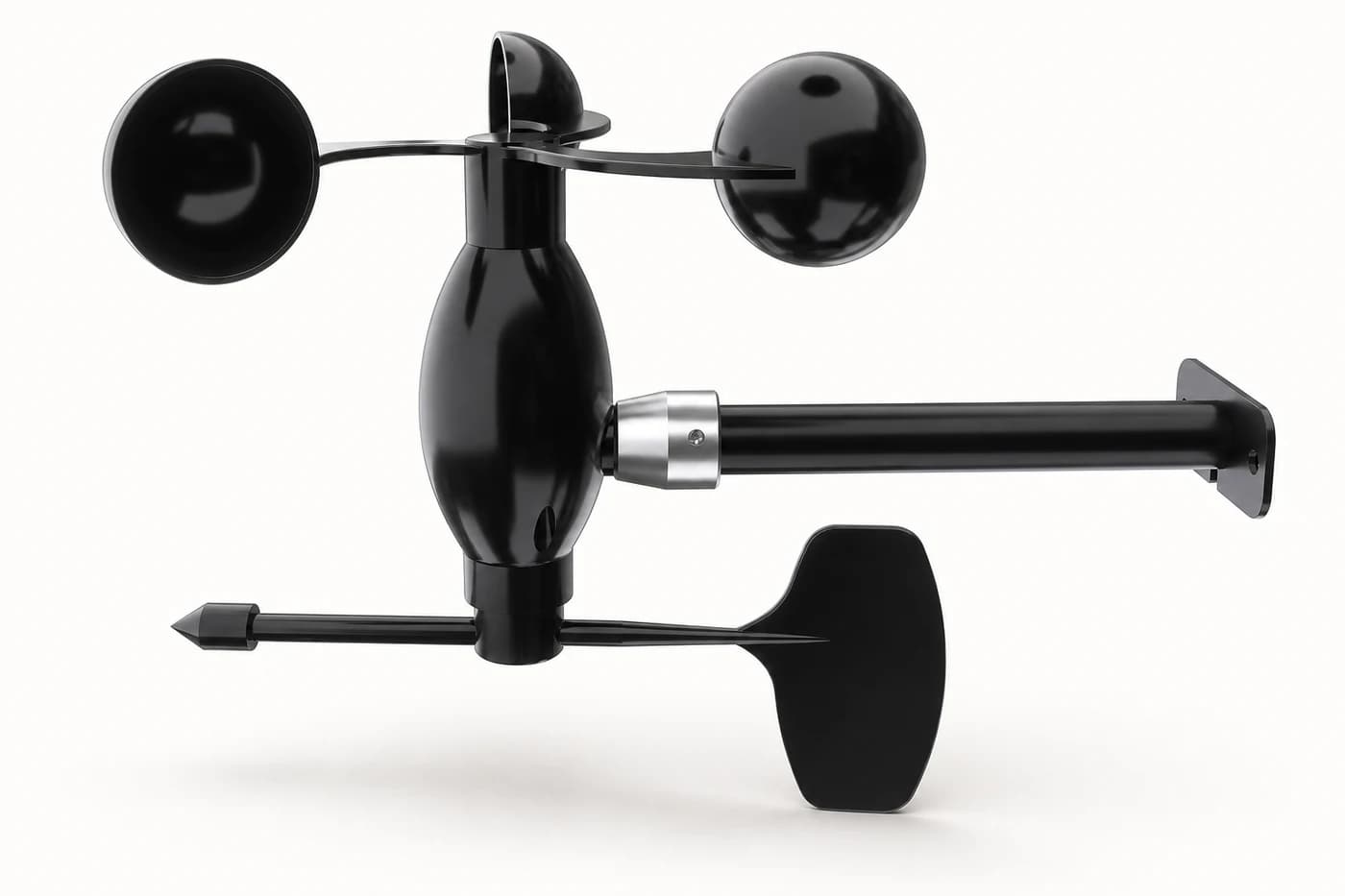

Representative image
Representative integrated wind-speed and direction sensor visual derived from a reviewed exact-model reference and independently de-identified. It is not the final ordered-model photograph; range, output, supply, heater, cable, bracket, markings and environmental configuration are confirmed in the quotation.
Specifications
| Construction | Integrated cup anemometer and wind vane; polycarbonate composite housing |
|---|---|
| Wind speed range options | 0–30 / 0–50 / 0–60 m/s; select one |
| Starting wind speed | ≤0.3 m/s |
| Wind speed accuracy | ±(0.3 + 0.03V) m/s, where V is measured wind speed |
| Wind direction | 0–360°; accuracy ±1° |
| Output options | Select one: RS485 Modbus RTU, 4–20 mA, 0–2 V, 0–5 V or 0–10 V |
| RS485 settings | Modbus RTU; 9600 baud, no parity, 8 data bits, 1 stop bit; default address 01 |
| Power supply | 5–24 VDC for RS485 / 0–2 V; 12–24 VDC for other analog options |
| Optional heater | 12–24 VDC; 15 W average, 18 W peak |
| Response | Settling time <1 s; response time <1 s |
| Environment | -30 to 70 °C; ≤100% RH; IP65 |
| Cable | 2.4 m standard; other lengths by configuration |
Select one range, output and supply combination
The reviewed manual covers one integrated cup-and-vane sensor family with several mutually exclusive electrical configurations.
- Choose a 0–30, 0–50 or 0–60 m/s wind-speed range. Do not assume the 0–60 m/s range when the lower range is needed.
- Choose one output: RS485 Modbus RTU, 4–20 mA, 0–2 V, 0–5 V or 0–10 V. Pulse output is not part of the reviewed configuration.
- The reviewed wind-speed accuracy is ±(0.3 + 0.03V) m/s, where V is the measured wind speed; wind-direction accuracy is ±1°.
- RS485 and 0–2 V configurations use 5–24 VDC. The other reviewed analog configurations use 12–24 VDC.
- The optional heater uses 12–24 VDC and must be budgeted separately at 15 W average and 18 W peak.
- Mount the sensor clear of nearby roofs, masts and obstructions, and plan inspection of the cups, vane and bearings.
Typical applications
- Irrigation, greenhouse and farm weather monitoring where wind affects spraying or field work
- Solar, water and utility sites that need local wind data alongside other environmental measurements
- Weather loggers and remote RTUs that accept RS485 Modbus RTU or a selected analog input
- Fixed non-hazardous mast installations where moving parts can be inspected and maintained
