Outdoor LoRaWAN Gateway
IP65 outdoor multi-channel LoRaWAN gateway with Ethernet / Wi-Fi, 802.3af PoE, secure MQTT and optional cellular backhaul for distributed sensor networks.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.
Image details

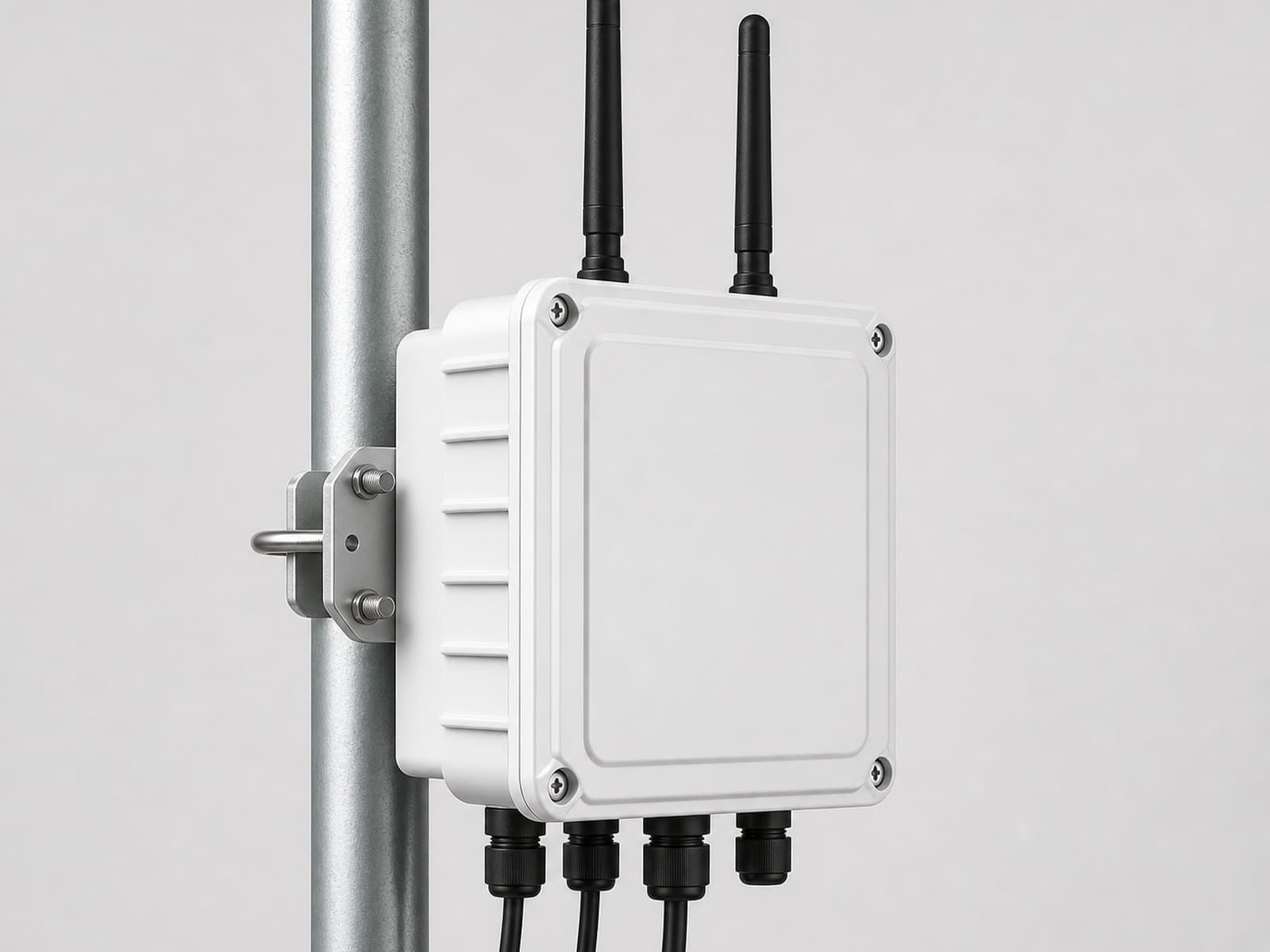

Representative outdoor gateway family visual based on a reviewed hardware reference and independently de-identified. It is not the final ordered model; radio region, cellular option, enclosure details, connectors, antenna and mounting package are confirmed in the quotation.
Related application hardware: Water Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
Customer system
Customer's SCADA / Cloud / PLC System
Typical Reviewed Options
- LoRaWAN network
- Outdoor multi-channel gateway; regional frequency plan selected per country
- Management
- Embedded Linux with Web GUI and SSH over LAN or Wi-Fi
- Protocols / packet forwarding
- Semtech UDP packet forwarder, LoRaWAN Station and secure MQTT
- Backhaul
- Ethernet and Wi-Fi; cellular failover / backhaul optional
- Power
- 802.3af PoE or 12 VDC input
- Protection / temperature
- IP65, -20 to +85 °C, external antenna, GPS and lightning protection
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Remote integration context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Model-selection reference
Agriculture & Weather Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- LoRaWAN and 4G backhaul for field sites
- SG-coded options
- 18
- PDF pages
- 26–28
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- Confirm the LoRaWAN frequency plan and target country before selecting the radio variant.
- Estimate node count, reporting interval and expected traffic so channel capacity can be reviewed for the deployment.
- Choose the site backhaul: Ethernet or PoE where available, or a cellular option after operator and SIM requirements are checked.
- Define who owns the LoRaWAN network server and payload decoders before device onboarding is planned.
Show 2 more selection checks
Compatible with
- LoRaWAN tank, level, leak, weather and fill-level nodes
- Customer-owned network server via Semtech UDP or LoRaWAN Station
- Secure MQTT integration
- Ethernet, Wi-Fi or optional cellular backhaul
Typical package
- Representative IP65 outdoor LoRaWAN gateway family
- Country-specific radio plan and external antenna
- 802.3af PoE or 12 VDC field power
- Ethernet / Wi-Fi or optional cellular backhaul selected for the site
- Pole or wall mounting with lightning protection and grounding review
- Network-server onboarding and payload-decoder notes
Applications
Use this gateway to bring distributed LoRaWAN tank, level, leak, weather or fill-level nodes into a customer-owned network server. The reviewed family supports outdoor installation, Ethernet or Wi-Fi backhaul, 802.3af PoE or 12 VDC power, and optional cellular backhaul after the site and operator are checked.
- Outdoor LoRaWAN coverage for tank and water-level nodes
- Leak, weather and waste fill-level sensor networks
- Semtech UDP or LoRaWAN Station onboarding to a customer network server
- Secure MQTT handoff with Ethernet, Wi-Fi or project-selected cellular backhaul
What to include in your quote request
- Target country and LoRaWAN frequency plan
- Node types, quantity and reporting interval
- Site map, distance, terrain and mounting height
- Available Ethernet / PoE or cellular backhaul and operator
- Network server and payload-decoder ownership
- Power, enclosure, lightning protection, certification, quantity and project stage
Related selection guides
Related resources
LoRaWAN Water Tank and Wastewater Monitoring
Read guideLoRaWAN EU868 Gateway and RS485 Modbus Node
Read guide
Industrial Current Monitoring LoRaWAN
Read guideMore guides
Frequently asked questions
Which network protocols and management interfaces does this gateway support?
It forwards LoRaWAN traffic through the Semtech UDP packet forwarder or LoRaWAN Station and supports secure MQTT integration. Local management is available through a Web GUI and SSH over LAN or Wi-Fi.
Are the radio region and cellular backhaul fixed?
No. The LoRaWAN regional frequency plan is selected for the target country. Ethernet and Wi-Fi are the reviewed backhaul paths; cellular backhaul is an optional project configuration that must be matched to the destination operator and enclosure.
What outdoor conditions does the gateway support?
The reviewed operating range is -20 to +85 °C and the enclosure rating is IP65. The approved capability set also includes an external antenna, GPS for location and timing, and lightning protection. Final antenna, mounting, grounding and surge-protection details are confirmed for the site.
Can one outdoor LoRaWAN gateway cover several water tanks or farm sensors?
Often yes, when antenna height, obstructions, reporting interval, regional band and node power are suitable. Coverage is not a fixed kilometre claim. A site sketch and a pilot node test are safer than assuming a catalog range.
Which LoRaWAN frequency plan do I need for EU868 or AS923?
The plan follows the deployment country, not the company headquarters. Confirm EU868, AS923, US915 or another regional plan, plus the network server and decoder expectation, before samples or firmware labels are finalized.
What should I provide when requesting a quote for the Outdoor LoRaWAN Gateway?
Target country and LoRaWAN frequency plan; Node types, quantity and reporting interval; Site map, distance, terrain and mounting height; Available Ethernet / PoE or cellular backhaul and operator
Where can I compare available model options?
Open the Agriculture & Weather Hardware Catalog linked on this page. It lists SG-coded selections reviewed from available source documents; the ordered configuration is confirmed in the quotation.
Will it work with my existing system?
Compatibility is reviewed against your field signals, protocols and upstream platform. Typical pairings include LoRaWAN tank, level, leak, weather and fill-level nodes, Customer-owned network server via Semtech UDP or LoRaWAN Station, Secure MQTT integration.
