Atmospheric Temperature, Humidity & Pressure Sensor
Slim IP65 probe for air temperature, relative humidity and optional barometric pressure. Select one parameter package, output, supply and cable configuration for the receiving logger or RTU.
Category: Environmental & Agriculture Sensors

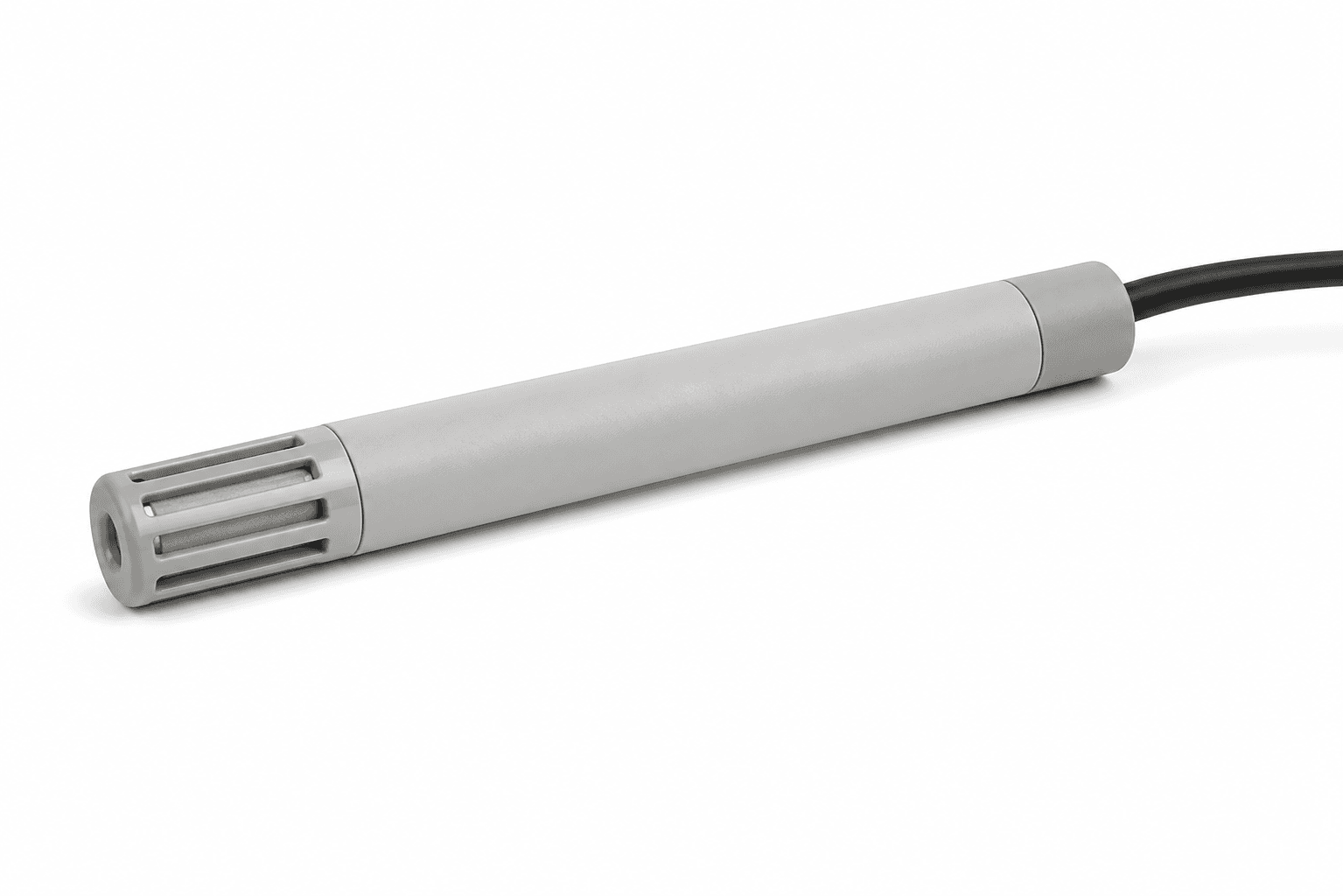

Representative image
Representative atmospheric temperature, humidity and pressure sensor visual derived from reviewed exact-model documents and independently de-identified. It is not the final ordered-model photograph; parameter set, output, supply, cable, optional radiation shield and fixing rail, markings and certificates are confirmed in the quotation.
Specifications
| Parameter configuration | T + RH; T + RH + pressure; T only; or RH only (select one) |
|---|---|
| Measurement ranges | -40 to +60 °C; 0-100% RH; 300-1100 hPa |
| Resolution | 0.1 °C; 0.1% RH; 0.1 hPa |
| Typical accuracy | ±0.5 °C; ±3% RH; ±1 hPa |
| High-precision option | Digital output only: ±0.2 °C; ±2% RH; ±1 hPa |
| Output (select one) | 4-20 mA, 0-5 V, 0-10 V, RS485 Modbus RTU, SDI-12 or IIC |
| Supply / current | 5 VDC or 12-24 VDC by configuration / <5 mA |
| Protection / body | IP65 ABS probe, 158 mm × 17 mm, 120 g |
Select the parameter package and output before quotation
This sensor family is ordered as a defined configuration, not as one unit containing every listed parameter and interface.
- Choose temperature and humidity, temperature / humidity / pressure, temperature only or humidity only.
- Choose one output: 4-20 mA, 0-5 V, 0-10 V, RS485 Modbus RTU, SDI-12 or IIC.
- Match 5 VDC or 12-24 VDC supply to the selected output; do not assume both supply options apply to every configuration.
- The reviewed temperature range is -40 to +60 °C, humidity range is 0-100% RH and pressure range is 300-1100 hPa.
- Install in stable airflow away from direct sunlight, windows, air-conditioning and heating equipment unless the mounting and optional shield are reviewed for the site.
- The 11-plate radiation shield, fixing rail, cable length, logger and telemetry gateway are optional project items, not standard inclusions.
Typical applications
- Automatic weather stations and solar-farm environmental monitoring
- Greenhouse, livestock-farm, forestry and agricultural microclimate measurement
- Storage-room and climate-chamber temperature / humidity monitoring
- RS485, analog or SDI-12 sensing points connected to a customer logger, PLC or telemetry RTU
Inquiries: contact@sungeneiot.com · sungeneiot.com
Specifications are for reference and may be updated; confirm the final spec with SunGene before ordering.
