SG-SOIL-121: Soil Moisture, Temperature and EC Sensor

Soil Moisture, Temperature & EC Sensor

Three-parameter soil probe for moisture, -30 to +70 °C temperature and selectable EC ranges, with 0-2 V, RS485 Modbus RTU or SDI-12 output.

Category: Environmental & Agriculture Sensors

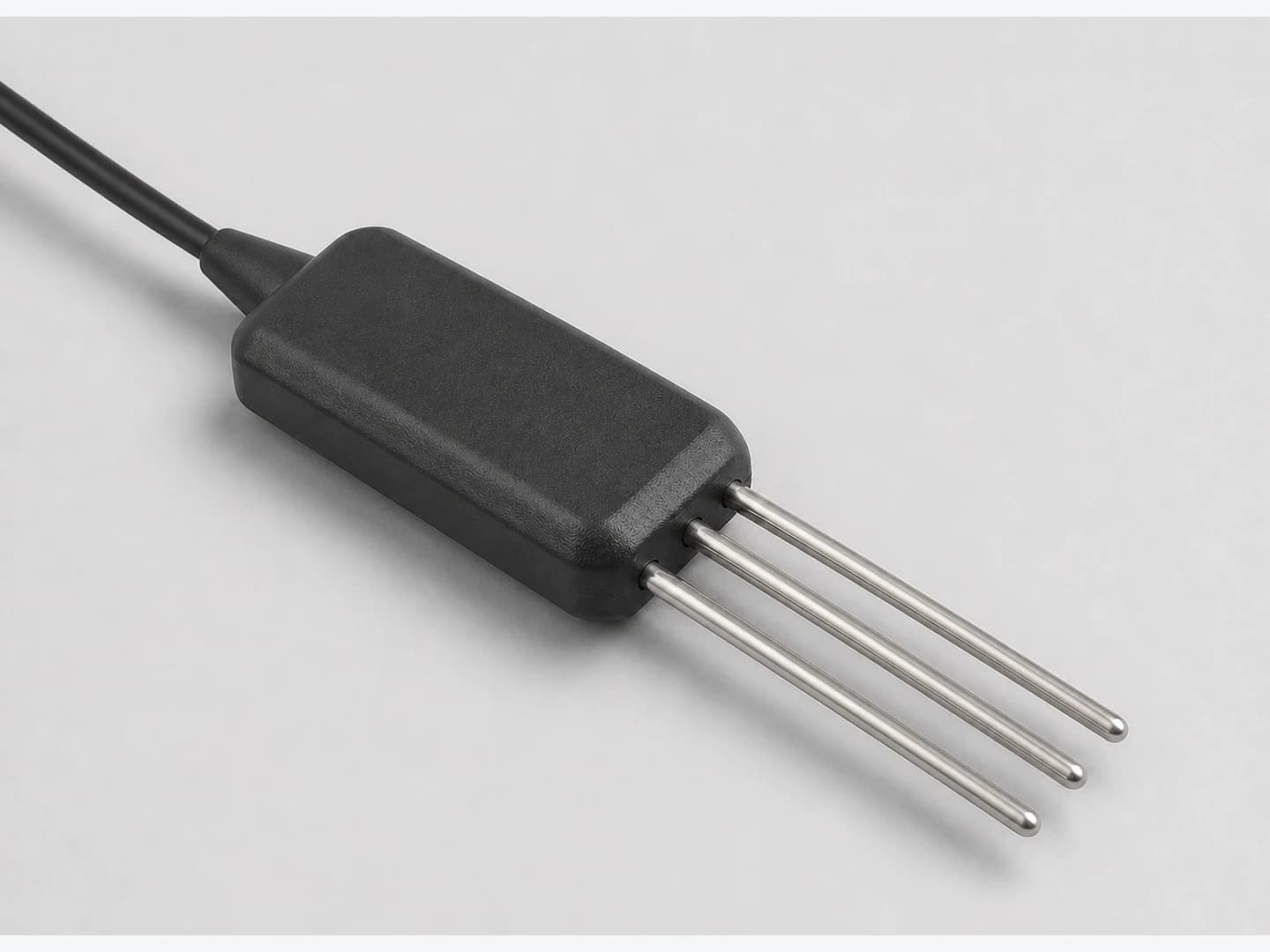

Pictured: SG-SOIL-121 — Soil Moisture, Temperature and EC Sensor.

Specifications & version options

ParametersSoil moisture by FDR, soil temperature and EC by AC excitation
Moisture range0–50% or 0–100%, selected when ordering
Moisture accuracy±2% from 0–50%; ±3% from 51–100%
Moisture resolution0.03% from 0–50%; 1% from 51–100%
Temperature measurement-30 to +70 °C; ±0.5 °C; 0.1 °C resolution
EC range options0–5000, 0–10000 or 0–20000 µS/cm
EC performance±3% FS; 0.01 mS/cm resolution
Output options0-2 V, RS485 Modbus RTU or SDI-12; one selected when ordering
Supply3.6–30 VDC; SDI-12 configuration 5–24 VDC
Current6 mA at 12 VDC
RS485 defaultModbus RTU, 9600 baud, 8N1, address 0x01
ConstructionABS body; three 316L rods, Ø3 × 70 mm; 45 × 15 × 145 mm
InstallationSurface insertion or buried installation
Environment-40 to +80 °C operating; IP68; epoxy sealed

Range, output and soil installation

Match the sensor to the logger and protect connections at the measurement point.

  • Choose a 0-50% or 0-100% moisture range and a 0-5000, 0-10000 or 0-20000 µS/cm EC range when ordering.
  • Choose one output: 0-2 V, RS485 Modbus RTU or SDI-12. These are ordered alternatives, not simultaneous standard outputs. Match the supply, cable and receiving logger or RTU.
  • The measurement-temperature range is -30 to +70 °C. The separate -40 to +80 °C value is the operating-environment limit.
  • For surface insertion, push the rods vertically into undisturbed soil. For buried installation, press them horizontally into a prepared pit wall.
  • Keep the three rods in close soil contact, avoid stones and do not rock the probe after insertion. The effective sensing area is approximately a 70 mm diameter by 70 mm high cylinder around the rods.
  • IP68 and epoxy sealing protect the probe, but cable joints, lightning protection and the upstream enclosure still require site-specific protection.
  • Record soil type, depth, orientation, moisture condition and comparison procedure with the readings. Field EC supports trends under these conditions; certified soil-salinity results require the appropriate laboratory method.

Typical applications

  • Irrigation scheduling based on moisture trends at defined root-zone depths
  • Greenhouse, orchard and field trials that compare multiple sensing points
  • Seasonal soil moisture, temperature and EC trend monitoring
  • Buried monitoring installations with a planned inspection and comparison-reading procedure
