AMI Three-Phase CT Smart Electricity Meter
Three-phase four-wire CT-connected smart meter with bidirectional energy measurement, RS485 and selectable plug-in PLC, RF or cellular communication.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.
Image details

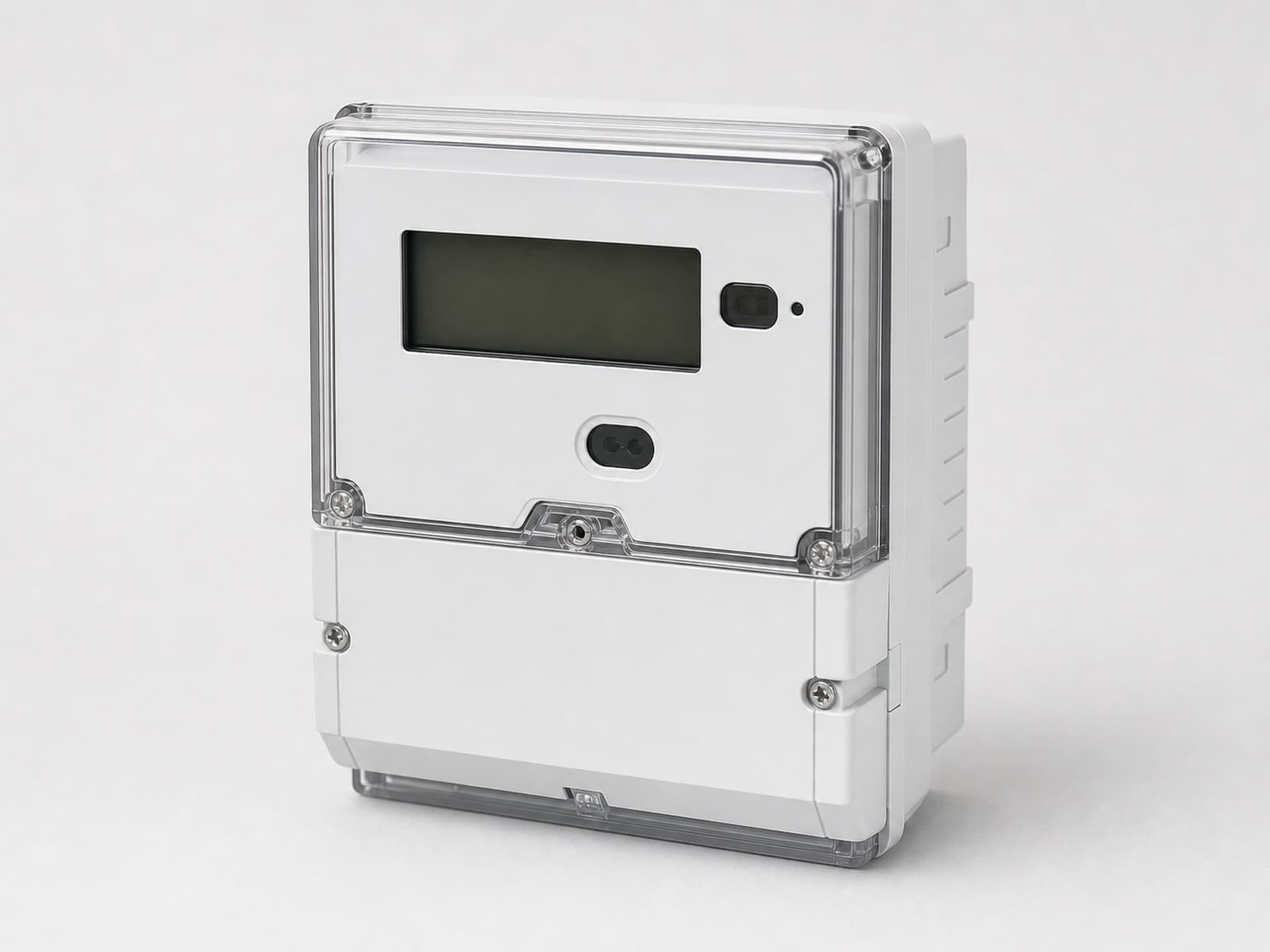

Representative three-phase CT smart-meter visual derived from a reviewed exact-model reference and independently de-identified. It is not the final ordered-model photograph; CT ratio, communication module, protocol profile, wiring, display, markings, utility approval and certificates are confirmed in the quotation.
Related application hardware: Energy Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
RTU / Data Logger
RS485 to Ethernet Gateway / Serial Server
Customer system
Customer's SCADA / Cloud / PLC System
Typical Reviewed Options
- Configuration
- Three-phase four-wire, CT connected
- Voltage
- 3 x 57.7/100 to 230/400 VAC; operating range 0.6–1.3 Un
- Frequency
- 50 Hz ±5%
- Current input
- 0.05–5(10) A; starting current 0.1% Ib
- Accuracy
- Active energy Class 0.5S; reactive energy Class 2
- Measurements
- Bidirectional active/reactive energy, multi-rate energy and maximum demand
Show 6 more specification rows
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Remote integration context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Select the meter and communication module as one ordered configuration
- This reviewed meter is a three-phase four-wire CT-connected design. It is not a single-phase, direct-connected or DIN-rail meter.
- Confirm the primary CT ratio and the 5 A secondary circuit before wiring or register mapping is released.
- RS485 and infrared are documented interfaces; PLC, RF, 2G, 3G and 4G are plug-in module options, not simultaneous standard equipment.
Show 2 more reviewed selection notes
Model-selection reference
Industrial Monitoring Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- Energy metering and current sensing
- SG-coded options
- 22
- PDF pages
- 31–34
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- Confirm the three-phase four-wire system voltage, primary CT ratio, 5 A secondary circuit, polarity and installation drawing.
- Define the HES or AMI data profile, ordered plug-in communication module, protocol and security responsibilities before the pilot.
- List the required energy registers, tariff periods, maximum-demand data, tamper events and remote-upgrade policy.
- Review destination-country metrology approval, utility acceptance, markings, enclosure, seal workflow and commissioning records.
Show 1 more selection checks
Compatible with
- Three-phase four-wire installations using CT secondary current within the reviewed input range
- HES or AMI platforms after the data profile, protocol and security responsibilities are reviewed
- One selected plug-in PLC, RF, 2G, 3G or 4G communication module
- RS485 and infrared local interfaces when included in the ordered configuration
Typical package
- Three-phase four-wire CT-connected smart electricity meter
- One selected plug-in communication module
- CT, wiring and protocol mapping sheet for the ordered configuration
- Pilot sample with acceptance checks defined for the destination project
Applications
Use this meter for three-phase four-wire AMI or remote-metering projects that require CT-connected current input, bidirectional active and reactive energy measurement, local LCD readout and a selectable communications path. The reviewed hardware provides RS485 and infrared interfaces and accepts plug-in PLC, RF, 2G, 3G or 4G modules. The CT ratio, ordered module, protocol profile, wiring, markings and destination approval are confirmed for each project.
- CT-connected three-phase metering in commercial and industrial installations
- AMI pilots that require a replaceable PLC, RF or cellular communication module
- Bidirectional active and reactive energy collection for monitored import and export
- Remote meter-reading projects using an approved HES or customer data platform
What to include in your quote request
- Country, utility and metrology requirements
- System voltage, wiring diagram, CT primary ratio and 5 A secondary circuit
- Required energy, tariff, demand and event data
- HES / AMI protocol, ordered communication module and security responsibilities
- Metering enclosure, seal and commissioning workflow
- Pilot quantity, rollout quantity and project stage
