Multi-Parameter Water Quality Sensor
Integrated submersible water-quality probe with selectable sensing modules, RS485 Modbus RTU and automatic cleaning.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.
Image details

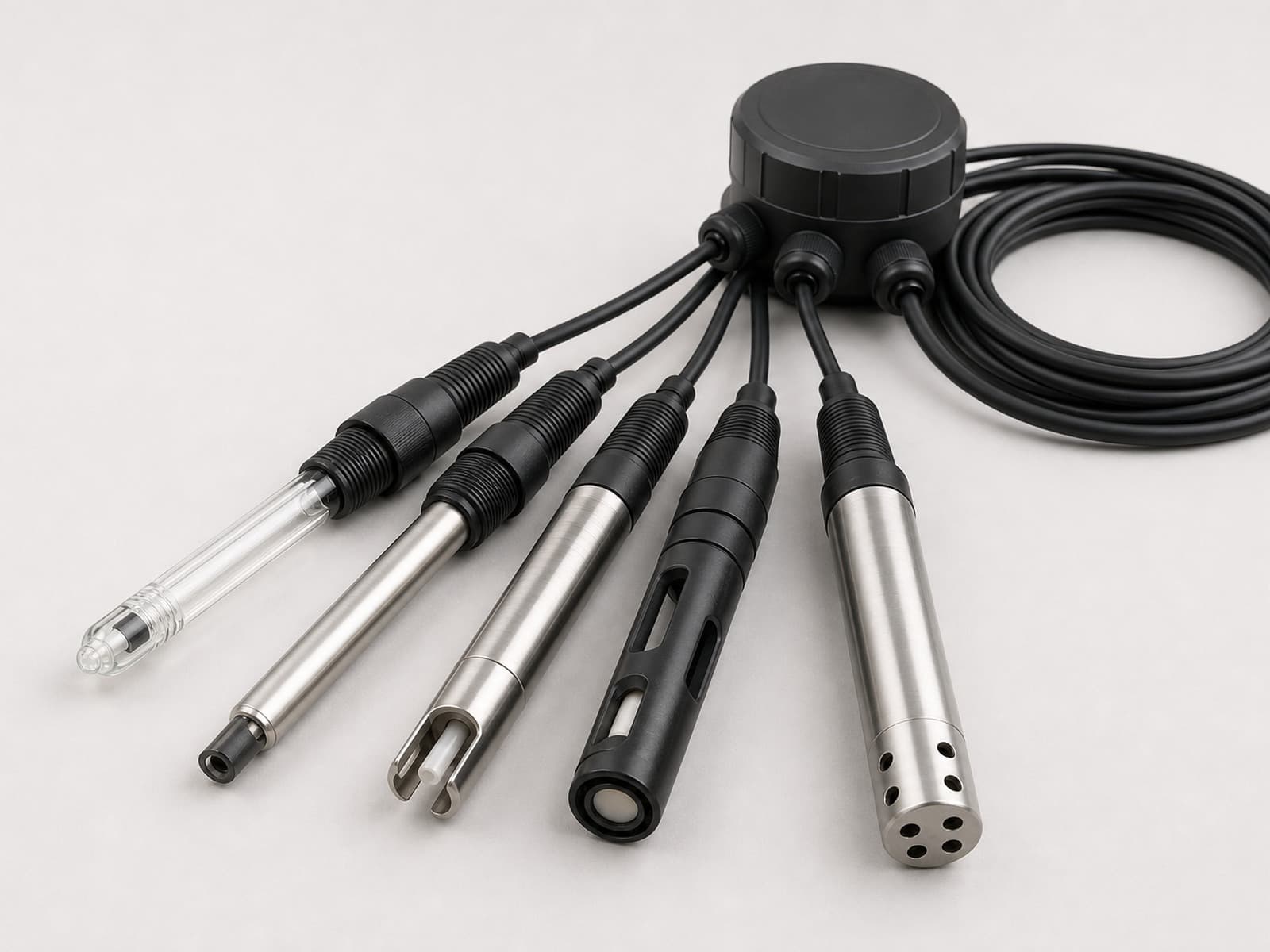

Representative integrated probe visual based on an exact-model reference; final modules, ranges, cable, materials and certificates are confirmed in the quotation.
Related application hardware: Water Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
Customer system
Customer's SCADA / Cloud / PLC System
Typical Reviewed Options
- Parameter capacity
- Up to 7 parameters at the same time, including temperature
- Documented options
- DO, COD, pH, ORP, EC / salinity, NH4+, turbidity and related modules
- Output
- RS485 Modbus RTU
- Cleaning
- Automatic cleaning with configurable interval and cycle count
- Power supply
- 12 VDC ±5%; approximately 5 W at 12 V
- Installation / construction
- Submerged installation; POM or 316L shell; 5 m default cable
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Remote integration context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Model-selection reference
Water & Utilities Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- Water-quality probes, controllers and monitoring stations
- SG-coded options
- 43
- PDF pages
- 4–5
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- Select only the parameters that drive an operating or compliance decision. The integrated platform supports up to seven parameters including temperature, but every added module increases calibration and replacement work.
- Define the water type, required ranges, immersion depth, flow conditions and likely fouling before the sensing modules are selected.
- Confirm the 12 VDC power budget, RS485 register map, reporting interval, cleaning access and calibration responsibility for the complete station.
Compatible with
- Water telemetry RTU
- 12 VDC field power system
- Outdoor installation enclosure
- Customer dashboard or SCADA
Typical package
- Integrated multi-parameter probe
- 12 VDC power path
- RS485 Modbus RTU / gateway
- Installation, cleaning and calibration plan
Applications
Use this integrated submersible probe when one monitoring point needs several water-quality parameters through a single RS485 Modbus RTU connection. The reviewed design combines selectable sensing modules with an automatic cleaning mechanism for wastewater, surface-water, aquaculture and process-water stations.
- Wastewater inlet, process and discharge monitoring where fouling and maintenance access must be planned.
- Surface-water, reservoir and research stations that need several parameters from one submerged assembly.
- Aquaculture and process-water monitoring with RS485 data collection and scheduled cleaning.
- Pilot stations that start with pH, dissolved oxygen and turbidity, then add only the parameters required by the project.
What to include in your quote request
- Selected parameters, ranges and decision thresholds
- Water type, temperature and expected fouling
- Immersion depth, flow conditions and installation access
- RS485 controller / gateway, cable length and reporting interval
- Cleaning / calibration ownership, quantity and project stage
Related selection guides
Related resources
Frequently asked questions
Which water-quality parameters can be configured?
The reviewed platform can measure up to seven parameters at the same time including temperature. Documented options include dissolved oxygen, COD, pH, ORP, conductivity / salinity, ammonium and turbidity. The quotation lists the selected modules and ranges; parameters not ordered are not implied.
How does the automatic cleaning function affect maintenance?
The integrated cleaning device can run at configured intervals and cycle counts to reduce fouling on the sensing surfaces. It does not remove the need for site inspection, parameter-specific calibration, consumable replacement or access for manual service.
How is the probe powered and connected?
The reviewed unit uses RS485 Modbus RTU, 12 VDC ±5% power and approximately 5 W at 12 V. A 5 m cable is the documented default. Confirm the final register map, cable length, power budget and gateway before commissioning.
What should I provide when requesting a quote for the Multi-Parameter Water Quality Sensor?
Selected parameters, ranges and decision thresholds; Water type, temperature and expected fouling; Immersion depth, flow conditions and installation access; RS485 controller / gateway, cable length and reporting interval
Where can I compare available model options?
Open the Water & Utilities Hardware Catalog linked on this page. It lists SG-coded selections reviewed from available source documents; the ordered configuration is confirmed in the quotation.
Will it work with my existing system?
Compatibility is reviewed against your field signals, protocols and upstream platform. Typical pairings include Water telemetry RTU, 12 VDC field power system, Outdoor installation enclosure.
