Final configuration is confirmed in the quotation.
Solar Field Power Kit
Field power package with a 60 W solar panel and IP67 12/24 V, 10 A controller for remote monitoring nodes; battery is selected and purchased locally.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.

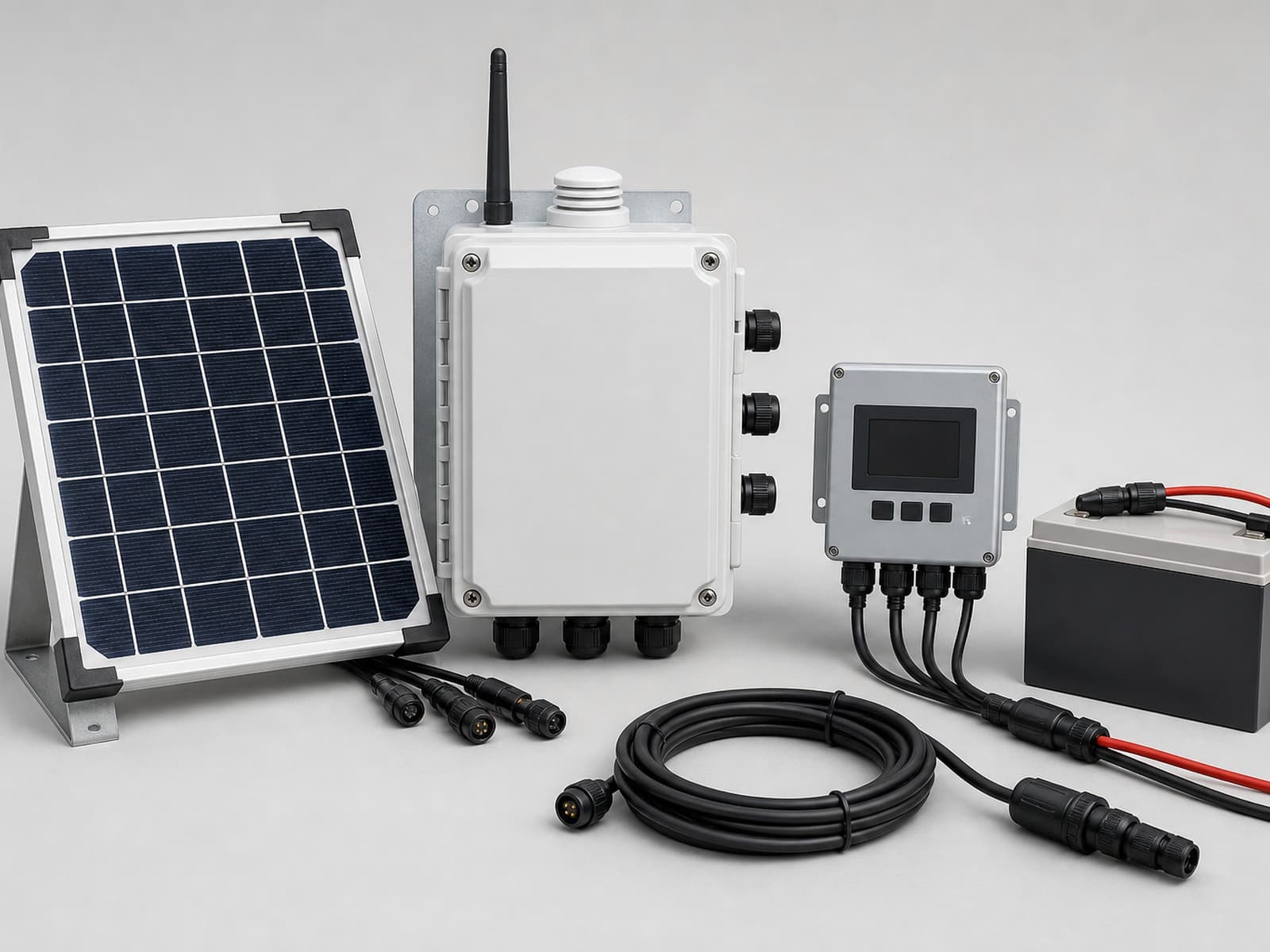

Image details
The image is representative of the product family, not the final ordered model.
Related application hardware: Environmental Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
Customer system
Customer's SCADA / Cloud / PLC System
Start from the site condition
Models and quotation stay on sungeneiot.com. Use the matching field condition first.
Typical Reviewed Options
- Supplied configuration
- 60 W solar panel + 12 V / 10 A controller
- Controller voltage
- Automatic 12/24 VDC system detection
- Rated current / modes
- 10 A / four selectable work modes
- Protection / temperature
- IP67 / -40 to +70 °C
- Electrical protection
- Overload, short circuit, reverse polarity and battery under/over-voltage
- Battery scope
- Not included; size and purchase locally for the required autonomy
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Remote integration context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Model-selection reference
Agriculture & Weather Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- Solar power, masts, cabinets and enclosures
- SG-coded options
- 17
- PDF pages
- 29–31
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- The verified supplied configuration is a 60 W solar panel with a 12/24 V, 10 A controller; confirm the monitoring-node load before using this configuration.
- The battery is not included. Select and purchase it locally from the required system voltage, daily load, climate and autonomy target.
- Check steady-state and startup current against the controller rating, especially for cellular gateways and heated instruments.
- Provide the mounting method and cable run so panel brackets, wiring and weather protection can be confirmed separately.
Compatible with
- 4G/LTE RTU gateway
- LoRaWAN gateway or node
- Weather station
- Tank level sensor package
Typical package
- 60 W solar panel
- 12/24 V, 10 A charge controller
- Panel-to-controller cable
- Battery selected and purchased locally (not included)
Applications
Use this kit to power a low-load monitoring node at a site without reliable mains power. The reviewed supply package is a 60 W solar panel with an IP67 12/24 V, 10 A controller. Confirm the connected device load, local solar conditions and required autonomy before using this configuration.
- Remote water-level, pump and tank monitoring sites
- Weather and agricultural sensor stations
- Low-load RTU, gateway or wireless-node power after load review
- Off-grid pilots where the battery can be sized and purchased locally
What to include in your quote request
- Powered device(s), voltage and consumption (W or A)
- Daily runtime / reporting interval
- Required battery autonomy and local climate
- Mounting method and cable length
- Quantity and deployment location
Related selection guides
Related resources
Frequently asked questions
What is included in the reviewed solar power kit?
The reviewed supplied configuration is a 60 W solar panel, a 12/24 V controller rated at 10 A, and the panel-to-controller cable. The battery is not included.
How should the battery be selected?
Size and purchase the battery locally from the system voltage, daily energy use, startup current, local solar conditions and required autonomy. A 60 W panel is not automatically suitable for every RTU, gateway, heater or instrument load.
What controller limits and protection have been reviewed?
The reviewed controller supports automatic 12/24 V system detection, a 10 A rating, four selectable work modes, IP67 protection and -40 to +70 °C operation. It includes overload, short-circuit, reverse-polarity and battery under/over-voltage protection.
What should I provide when requesting a quote for the Solar Field Power Kit?
Powered device(s), voltage and consumption (W or A); Daily runtime / reporting interval; Required battery autonomy and local climate; Mounting method and cable length
Where can I compare available model options?
Open the Agriculture & Weather Hardware Catalog linked on this page. It lists SG-coded selections reviewed from available source documents; the ordered configuration is confirmed in the quotation.
Will it work with my existing system?
Compatibility is reviewed against your field signals, protocols and upstream platform. Typical pairings include 4G/LTE RTU gateway, LoRaWAN gateway or node, Weather station.
