Outdoor Enclosure Integration Kit
Use an outdoor enclosure integration package when the RTU, gateway, power, terminals and protection need to arrive as one documented assembly. The final ingress rating is not assumed from the page slug; it is confirmed from the selected enclosure and assembly design.
This page is an application guide until a specific orderable model is confirmed. Available models are selected according to the required specification, interface, environmental rating and quantity.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.

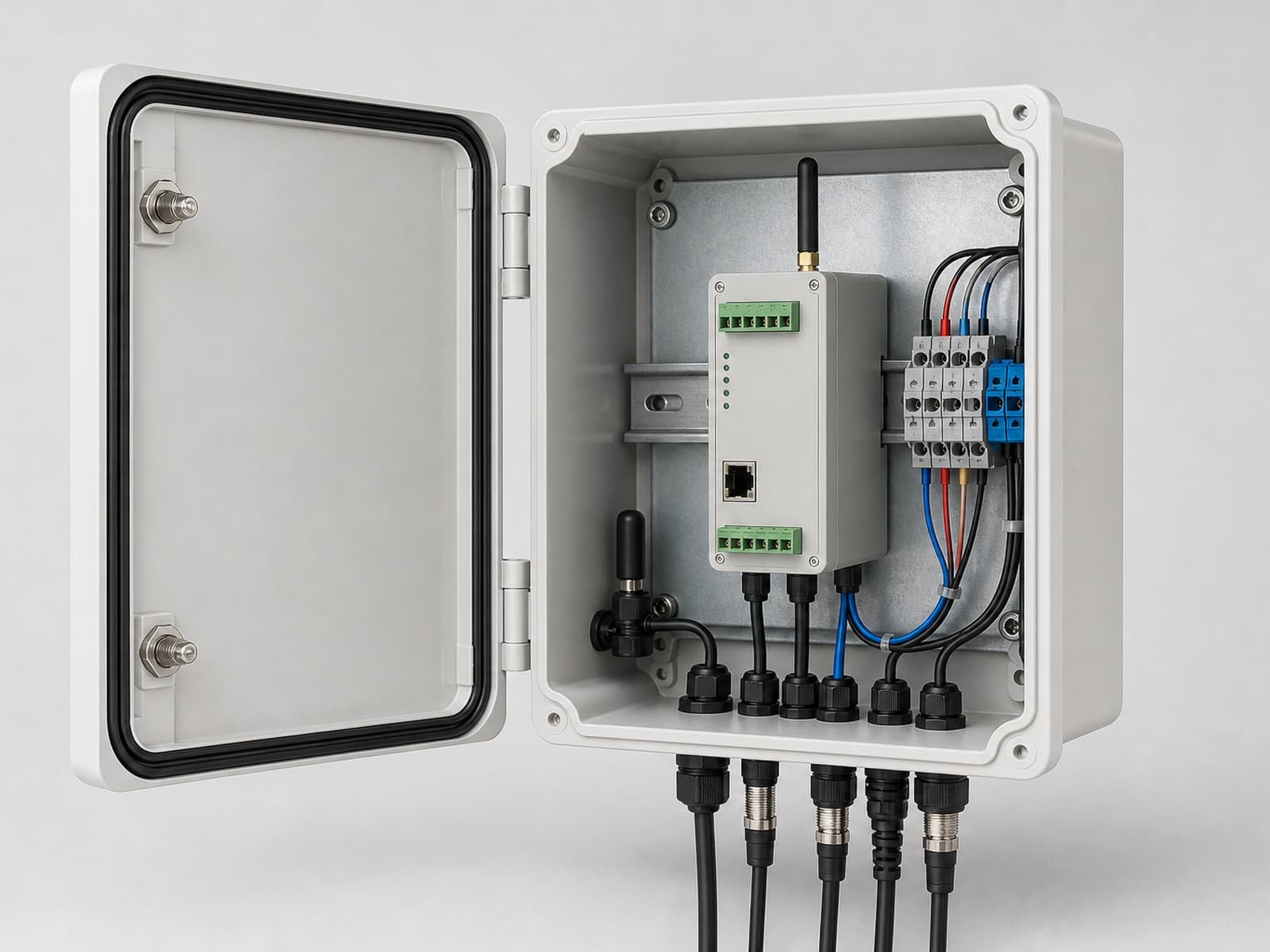

Image details
The image is representative of the product family, not the final ordered model.
Related application hardware: Equipment Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
Customer system
Customer's SCADA / Cloud / PLC System
Available configuration range
- Installed hardware
- Provide the complete device BOM, dimensions, terminal count and wiring diagram.
- Site protection
- State material, ingress target, corrosion, temperature, solar exposure and service access.
- Power and heat
- Confirm supply, peak load, battery, fusing, surge, grounding, ventilation and internal heat.
- Mechanical layout
- Define cable entries, bend radii, wall or pole mounting, drawings and acceptance test.
This page is an application guide until a specific orderable model is confirmed. Available models are selected according to the required specification, interface, environmental rating and quantity.
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Machine monitoring context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Model-selection reference
Agriculture & Weather Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- Solar power, masts, cabinets and enclosures
- SG-coded options
- 17
- PDF pages
- 29–31
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- Provide the complete device and terminal list plus dimensions, cable entries and bend radii before the enclosure size is selected.
- Calculate internal heat, supply, protection, grounding, surge and battery needs from the installed hardware and climate.
- Confirm wall / pole mounting, ingress target, material, corrosion exposure, service access and destination-country requirements.
Compatible with
- Industrial gateway or RTU
- DIN-rail power supply
- Terminal blocks, fusing and surge protection
- Project-selected cable glands or field connectors
Typical package
- Outdoor enclosure sized from the complete device and terminal list
- DIN-rail layout and internal wiring plan
- Cable entries, grounding, fusing and surge protection selected for the site
- Mounting drawing and acceptance checklist for the assembled package
Applications
Use an enclosure integration package when an RTU, gateway, power supply and field terminals must arrive as one documented assembly. The enclosure material, ingress target, internal heat, cable entries, grounding, surge protection and mounting are engineered from the actual bill of materials and site conditions.
- Outdoor RTU or gateway packages for remote water and utility sites
- Pole- or wall-mounted telemetry cabinets with project-selected power and protection
- Pilot assemblies that need repeatable wiring and installation documentation
What to include in your quote request
- Device BOM, dimensions and terminal count
- Cable types, glands, connectors and entry directions
- Power, protection, grounding, surge and heat load
- Material, IP target, mounting and climate
- Quantity, drawings, certification and project stage
Related selection guides
Related resources
Frequently asked questions
How do I select a Outdoor Enclosure Integration Kit?
Provide the complete device and terminal list plus dimensions, cable entries and bend radii before the enclosure size is selected. Calculate internal heat, supply, protection, grounding, surge and battery needs from the installed hardware and climate. Confirm wall / pole mounting, ingress target, material, corrosion exposure, service access and destination-country requirements.
What should I provide when requesting a quote for the Outdoor Enclosure Integration Kit?
Device BOM, dimensions and terminal count; Cable types, glands, connectors and entry directions; Power, protection, grounding, surge and heat load; Material, IP target, mounting and climate
Where can I compare available model options?
Open the Agriculture & Weather Hardware Catalog linked on this page. It lists SG-coded selections reviewed from available source documents; the ordered configuration is confirmed in the quotation.
Will it work with my existing system?
Compatibility is reviewed against your field signals, protocols and upstream platform. Typical pairings include Industrial gateway or RTU, DIN-rail power supply, Terminal blocks, fusing and surge protection.
