Final configuration is confirmed in the quotation.
Industrial Pressure Transmitter
Compact stainless pressure transmitter with selectable analog output for pump stations, pipelines and industrial utility monitoring.
Start with the information you have. Exact model, interface and certificates are confirmed in writing before order.
Image details

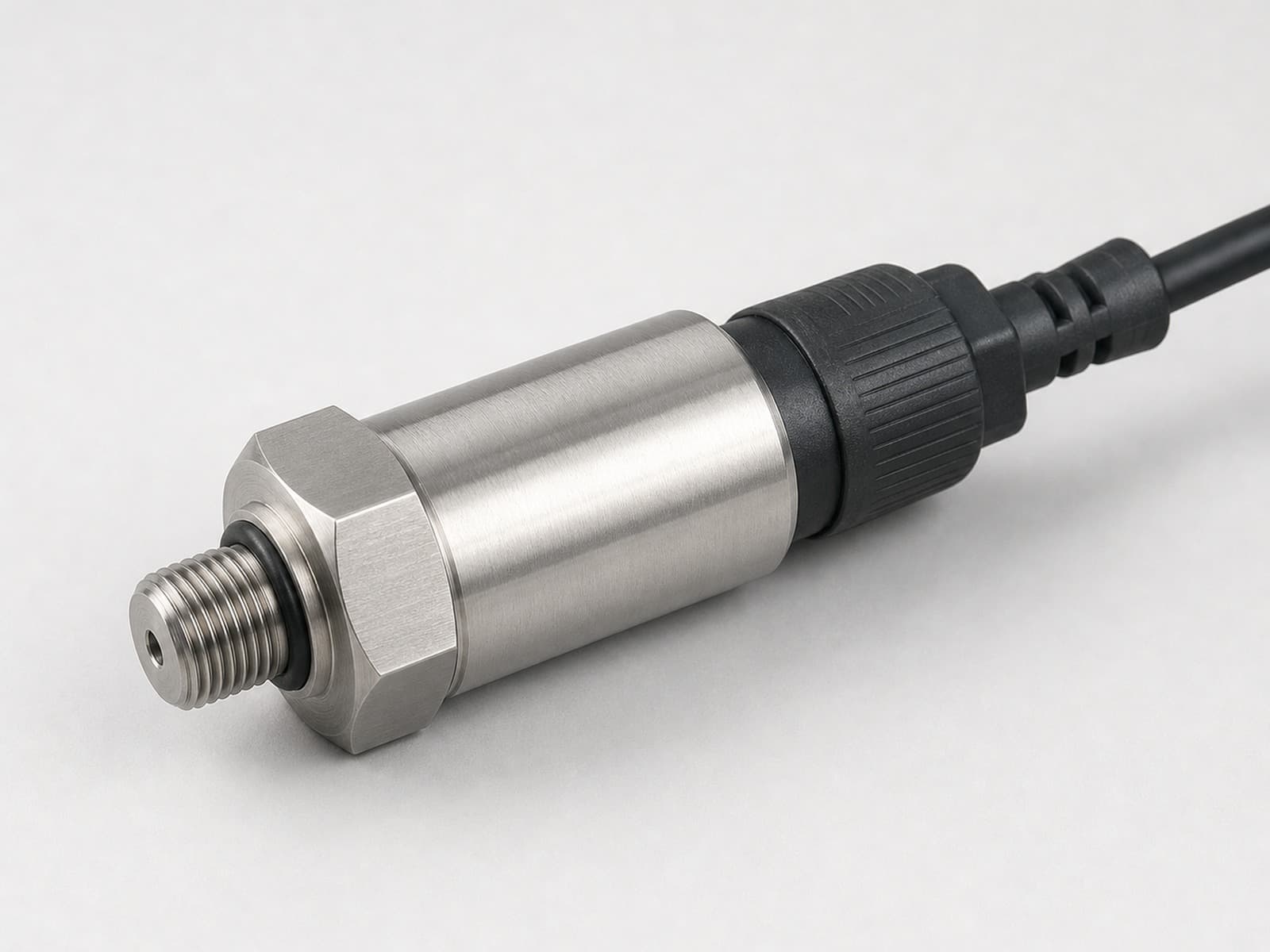

Representative compact pressure-transmitter visual derived from a reviewed exact-model reference and independently de-identified. It is not the final ordered-model photograph; pressure reference, range, analog output, power, process thread, electrical connection, display, markings, hazardous-area suitability and certificates are confirmed in the quotation.
Related application hardware: Water Monitoring
Typical Hardware Architecture
Final system design, software integration, PLC/SCADA programming and site installation are handled by the customer or their system integrator.
Customer system
Customer's SCADA / Cloud / PLC System
Typical Reviewed Options
- Pressure reference / range
- Gauge, absolute or sealed gauge; standard spans from -100 kPa vacuum to 60 MPa
- Accuracy / response
- 0.5% FS / <=90 ms
- Analog output
- 4-20 mA, 0-5 V, 0-10 V or 0.5-4.5 V by configuration; no RS485 on this reviewed family
- Power supply
- 12-30 VDC for 4-20 mA; output-specific supply including 5 VDC on the applicable voltage option
- Connections
- DIN 43650, M12, cable outlet or connector with cable; documented threaded process options
- Materials / protection
- 316L isolation diaphragm, stainless structure / IP65
Show 1 more specification rows
How the model is selected
The written quotation ties the site requirement to one reviewed hardware configuration.
Site requirement
Application, medium, mounting and environment
Hardware configuration
Signal, protocol, power and enclosure
Quote confirmation
Model, quantity, certificates and delivery
Remote integration context
Representative site context. Sensors, interfaces, enclosure, power and mounting are confirmed against the actual project before quotation.
Select the pressure, signal and connection as one configuration
The reviewed family supports several ranges and analog outputs, but the options are not interchangeable after the transmitter is ordered.
- Choose gauge, absolute or sealed-gauge reference and size the range from the normal pressure plus credible peak or surge.
- The reviewed standard span covers -100 kPa vacuum to 60 MPa. Availability still depends on the selected pressure reference, process connection and output.
- The reviewed accuracy is 0.5% FS and the response time is no more than 90 ms.
Show 3 more reviewed selection notes
Model-selection reference
Water & Utilities Hardware Catalog
Compare SG-coded hardware options reviewed from available source documents. Ordered configuration is confirmed in the quotation.
- Catalog section
- Pressure and differential-pressure transmitters
- SG-coded options
- 25
- PDF pages
- 9
Continue product selection
Compare adjacent hardware families for the same monitoring path. The final combination is checked against the project I/O, protocol, power and enclosure requirements.
How to choose
- Choose gauge, absolute or sealed-gauge reference, then size the range from the normal pressure plus credible peak or surge.
- Match the selected 4-20 mA or voltage output to the receiving analog input and its required power supply. This reviewed family does not provide RS485 or Modbus.
- Confirm the process thread and DIN 43650, M12 or cable connection so the transmitter fits both the pressure point and field wiring.
- Check medium compatibility, process temperature, ambient temperature and IP65 suitability before approving the installation.
Show 1 more selection checks
Compatible with
- PLC, RTU or data-acquisition analog inputs matched to the selected 4-20 mA or voltage output
- Pump discharge, pipeline, water-treatment and industrial utility pressure points
- Gauge, absolute or sealed-gauge measurement after the pressure reference is confirmed
- Remote telemetry through a separate RTU or gateway with a compatible analog input
Typical package
- Compact stainless pressure transmitter with the selected range and pressure reference
- Selected 4-20 mA or voltage output with its matching power supply
- DIN 43650, M12 or cable electrical connection selected for the installation
- Documented threaded process connection or a project-specific adapter
- PLC, RTU or data-acquisition analog input plus scaling and alarm notes
Applications
Use this compact transmitter for pump discharge, water pipeline and utility pressure points that feed a PLC, RTU or data-acquisition analog input. The reviewed family covers gauge, absolute and sealed-gauge references, standard ranges from -100 kPa vacuum to 60 MPa, and several analog-output configurations. Range, output, supply, process thread and electrical connection must be selected as one orderable configuration.
- Pump discharge-pressure monitoring for low-pressure, blocked-line and abnormal-operating alarms
- Water-treatment and utility pipeline pressure measurement through a local analog input
- Hydraulic, pneumatic or process equipment where the medium is compatible with the wetted materials
- Remote pressure telemetry through a separate 4G, Ethernet or other RTU / gateway with an analog input
What to include in your quote request
- Gauge, absolute or sealed-gauge reference
- Normal, maximum and surge pressure with units
- 4-20 mA or voltage output and receiving analog input
- Power supply and electrical connection
- Process thread, medium and temperature
- Installation environment, quantity and upstream PLC / RTU / data-acquisition system
Related selection guides
Related resources
4G RTU Remote Monitoring Selection Guide
Read guide
4G LTE Agricultural and Industrial Monitoring Package
Read guide
Data Acquisition Gateway — RS485 / Modbus to MQTT, SCADA & Cloud
Read guideIndustrial IoT Remote Monitoring
Read guideFrequently asked questions
Which pressure ranges are available?
The reviewed family includes standard ranges from -100 kPa vacuum to 60 MPa. Share the normal pressure, maximum operating pressure, surge condition and whether the reference is gauge, absolute or sealed gauge so the range can be confirmed.
Does this pressure transmitter support RS485 or Modbus?
No. The exact reviewed family provides analog outputs: 4-20 mA, 0-5 V, 0-10 V or 0.5-4.5 V by configuration. A serial pressure transmitter must be selected as a different product and reviewed separately.
Which power supply is required?
The reviewed 4-20 mA configuration uses 12-30 VDC. Applicable voltage-output configurations use the supply stated for that output, including 5 VDC on the reviewed ratiometric option. The output and supply are confirmed together in the quotation.
What must be confirmed before quotation?
Provide the pressure reference and range, output and receiving input, process thread, electrical connector, medium and temperature, installation environment, quantity and the upstream PLC, RTU or data-acquisition system.
What should I provide when requesting a quote for the Industrial Pressure Transmitter?
Gauge, absolute or sealed-gauge reference; Normal, maximum and surge pressure with units; 4-20 mA or voltage output and receiving analog input; Power supply and electrical connection
Where can I compare available model options?
Open the Water & Utilities Hardware Catalog linked on this page. It lists SG-coded selections reviewed from available source documents; the ordered configuration is confirmed in the quotation.
Will it work with my existing system?
Compatibility is reviewed against your field signals, protocols and upstream platform. Typical pairings include PLC, RTU or data-acquisition analog inputs matched to the selected 4-20 mA or voltage output, Pump discharge, pipeline, water-treatment and industrial utility pressure points, Gauge, absolute or sealed-gauge measurement after the pressure reference is confirmed.
